Frame straightening restores a vehicle’s structural alignment to factory specification after collision damage bends, twists, or compresses the frame or unibody. At Invisible Touch Inc. in Bedford, MA, frame straightening is performed using computerized three-dimensional measuring equipment that identifies misalignment to within 1mm – ensuring repairs meet original manufacturer tolerances before any bodywork or paint begins.
Structural damage is not always visible after a collision. A vehicle can look undamaged and still have a frame that is out of alignment by several millimetres – enough to affect tire wear, suspension geometry, and long-term safety. Frame straightening corrects this at the structural level, not just the cosmetic surface.
200+ Happy Customers
in Bedford, MA
Frame straightening addresses structural deformations that occur at impact — including:
A single-point impact that pushes a rail or section out of its original plane
The entire front or rear of the vehicle is displaced left or right from centerline
Opposite corners of the vehicle are at different heights, affecting all four contact points
The frame is parallelogram-shaped rather than square, typically from a corner impact
Compression along the length of the vehicle shortens the wheelbase, common in front-end collisions
On vehicles without a traditional ladder frame, the structural pan or pillars are deformed
Before any pulls, we mount the vehicle to a measuring system and map 40–60 reference points against the manufacturer's published specifications. This establishes exactly where the frame deviates and by how much.

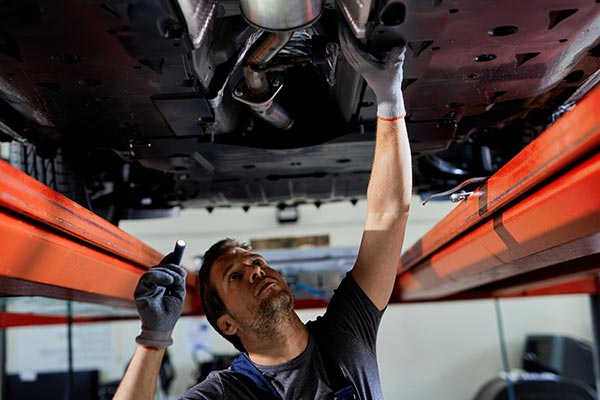

The vehicle is secured to the frame rack at anchor points that will not introduce secondary stress during the correction process. Anchor placement is determined by the damage type, not by convenience.
Hydraulic rams and chains apply force in the precise direction and magnitude required to return each damaged section to specification. Overcorrection is as damaging as under-correction - pressure is applied incrementally with remeasurement between each pull.
Once target specification is reached, a full remeasurement confirms all 40-60 reference points are within tolerance. No vehicle leaves the frame rack until computerized verification is complete.
All factory welds and structural seams in the repaired zone are inspected. Any welds that have cracked or separated under impact stress are repaired before bodywork begins.
After frame straightening is confirmed, the vehicle proceeds to full collision repair including panel replacement, paint matching, and reassembly.
Frame straightening is covered under comprehensive and collision insurance policies when the damage resulted from an accident, hail event, or other covered incident. Invisible Touch Inc. works directly with all major insurance carriers and can document structural damage findings - including computerized measurement reports - to support your claim.
We provide written repair estimates for insurance submission and communicate directly with adjusters when additional damage is identified during the straightening process. Structural repairs discovered after initial teardown are documented and submitted as supplements.
To begin the process, request a free estimate - we'll assess the structural damage and provide a complete repair plan before any insurance filing begins.
Frame straightening takes 1–3 days depending on the severity and type of structural damage. Minor sway or bend damage at a single point is typically corrected in one day. Compound damage types — such as twist combined with mash — require more setup time and multiple measurement cycles, extending the timeline to 2–3 days before bodywork begins.
A car straightened to factory specification is safe to drive. The goal of the repair is to return all structural reference points to within manufacturer tolerance - the same alignment the vehicle had when it left the factory. Invisible Touch confirms this with computerized measurement verification before the vehicle is released. A frame repaired to specification is structurally equivalent to one that was never damaged.
Signs that a vehicle may need frame straightening include uneven panel gaps after a collision, doors or trunk that don't close correctly, the steering wheel sitting off-center while driving straight, or unusual tire wear patterns that develop after an accident. The only way to confirm structural misalignment is through a computerized measurement baseline.
Most vehicles - both body-on-frame trucks and unibody cars - can be structurally straightened if the deformation is within correctable limits. In cases where impact forces have caused cracking, tearing, or metallurgical fatigue, section replacement is required rather than straightening.
Disclosed, properly repaired frame damage does not eliminate a vehicle's resale value, though it will appear on a vehicle history report if the repair was part of an insurance claim. A computerized measurement report showing post-repair alignment to factory specification is documentation that supports the quality of the structural repair.
Frame straightening typically ranges from $500 to $2,500 depending on the severity of the structural damage and the number of pull points required. Minor sway or bend damage at a single point falls at the lower end of that range. Compound damage types - twist, diamond, or mash - require more anchor setups and measurement cycles, which increases labor time and cost. Most frame repairs resulting from covered collisions are billed directly to the insurance carrier.
If your vehicle was in a collision, structural damage may not be visible from the outside. Invisible Touch Inc. provides a full computerized frame assessment at no charge — so you know exactly what the repair requires before committing to anything.
